Disc Harrow Bearing
Heavy Duty Disc Harrow Bearing |Tri-L Manufacturing

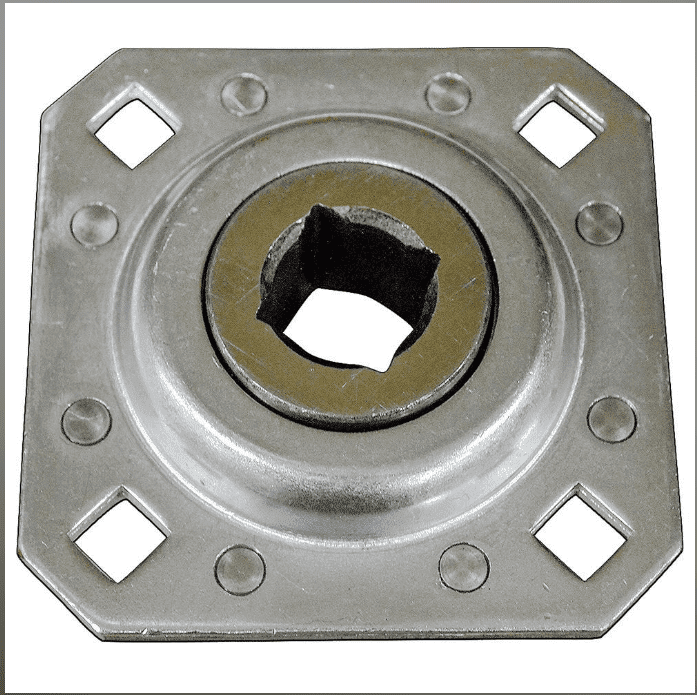

Disc Harrow Bearing

Part Number: 225001

Experience peak performance with our robust disc harrow bearing, expertly engineered for heavy-duty tasks. The precision-designed bearing bore, accompanied by four strategically placed bolt holes, guarantees optimal functionality. Crafted with your needs in mind, our disc harrow bearing boasts a sealed design featuring a molded rubber inner seal, ensuring effective lubrication and robust protection against moisture and dirt infiltration.

Our commitment to innovation extends to the flexible composite retainer, providing durability and reliability even in harsh conditions. The two flanged heavy-gauge housing plates, securely stamped together with eight rivets, form a sturdy and resilient construction that stands up to the toughest challenges.

The carefully designed 4.69-inch bolt pattern, spanning from bottom left to top right, ensures a secure fit, utilizing 1/2-inch bolts. Elevate your equipment’s performance with our disc harrow bearings— crafted for durability and longevity in harsh conditions.

Our square bore disc harrow bearings are manufactured to excel in both agricultural and industrial settings. Used for soil and lawn aeration, weed control, soil preparation and field management, our disc harrow bearing is engineered to withstand the harshest conditions promising an extended lifespan for your disc harrow equipment.

  • 1-inch square bearing bore
  • 4 bolt holes
  • The two flanged heavy gauge housing plates are stamped together with 8 rivets.
  • Bolt pattern is bottom left to top right bolt to bolt 4.69 inches, uses 1/2″ bolt
  • Moisture resilient
  • Dirt resilient
  • Prevents dirt infiltration
  • Heavy duty



4 3/4″ x 4 4/34″


2 pounds
